cellQART Cell Culture Inserts

The ideal insert for your VITROCELL^® exposure system.

Designed for advanced lung cell exposure studies
Certified Quality
Cleanroom manufactured
Work-saving Design
Made in Germany

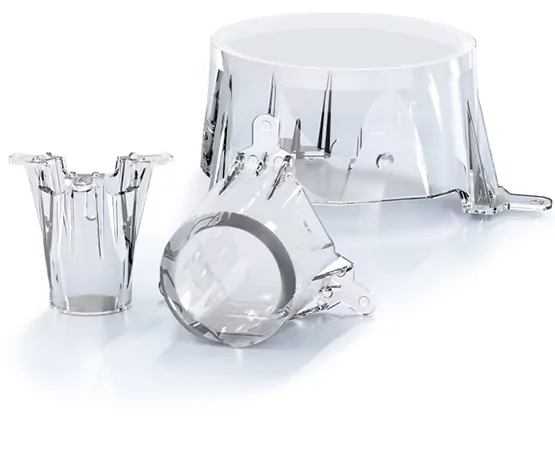

cellQART^® cell culture inserts by SABEU^® are made entirely in-house, using high-quality plastics and membranes. Designed specifically for advanced lung cell exposure studies, they offer distinct advantages in applications such as Air/Liquid Interface (ALI) cultures, co-culture systems, and barrier function assessments.

High-Quality TRAKETCH^® Membrane

The TRAKETCH^® membranes are made from tissue culture-treated PET, gamma sterilized, RNase/DNase-free and non-pyrogenic. Available in a pore size ranging of 0.4 μm, they ensure 100 % consistency in membrane parameters for highest reproducible cell culture results.

We offer two membrane versions:

Clear PET: Provides ideal transparency for phase contrast and bright field microscopy.
Clear extended culture PET: Optically identical to Clear PET, but with optimized pore density to support long-term cultures.

Designed to Make Your Work Easier1620

Wide window for comfortable access to the cultivation vessel.

Asymetric positioning for comfortable access to the cultivation vessel.

Wide window and asymmetric positioning for comfortable access to the cultivation vessel.

Lowered top edge and embossed spots on arms for easier access and better gas exchange.

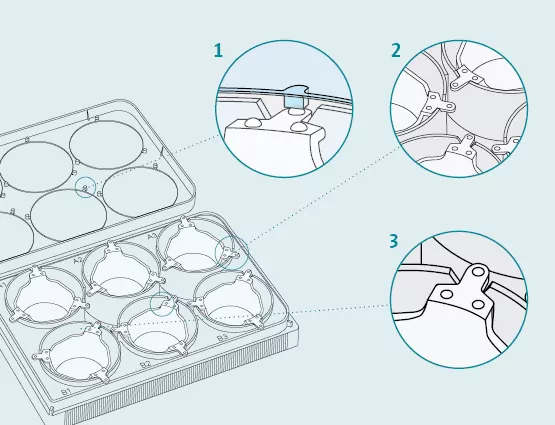

Pre-loaded Well Plates with Functional Lid

For cell cultures or in vitro tissues.
Distance holders (1) for proper oxygen exchange and secure transport position.
11° rotated (2) and stable deep placement (3): Prevents from overlapping and unwanted insert movement during pipetting.
Ready for integration with automated workflows (e.g. tissue printing).
Facilitates precise TEER electrode positioning for barrier function studies.
Lid with condensation rings to prevent cross-contamination.

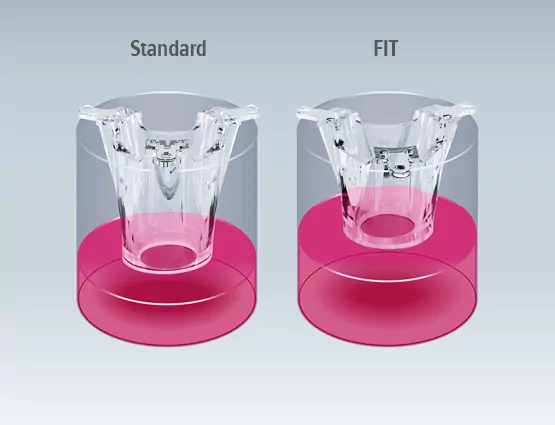

Standard or Flat Insert Technology Version

Special feature: Flat Insert Technology (FIT)
Up to 60 % more medium capacity in the lower compartment, reducing media changes and saving time.
Optimized for 24-well applications, ideal for parallel and automated workflows.
Pre-loaded convenience ensures stable, consistent placement and rapid experimental setup.
Reduced mechanical stress protects cell layers during long-term cultivation.
Enhanced gas exchange and nutrient access for optimal cell health, especially during extended cultures.

Prices and Specifications

(Valid from 7/2025)1515

Price per Box with 4 Pre-loaded Well Plates Order-No.	6-well plates	12-well plates	24-well plates		24-well FIT plates
	Fully loaded (24 inserts)	Fully loaded (48 inserts)	Fully loaded (96 inserts)	Half loaded (48 inserts)	Half loaded (48 inserts)
PET clear	€ 129,03 V999100	€ 243,31 V999102	€ 334,45 V999104	€ 238,– V999106	–
PET clear extended culture	€ 129,03 V999101	€ 243,31 V999103	€ 334,45 V999105	€ 238,– V999107	€ 381,– V999108

Insert Specifications	6-well	12-well	24-well	24-well FIT
Inner diameter (mm)	23.9	11.9	6.4	6.4
Outer diameter (mm)	26.9	14.9	9.4	9.4
Height (mm)	16.3	16.3	16.3	11.2
Growth area (cm²)	4.5	1.1	0.3	0.3
Insert working volume (ml)	1–4	0.2–0.8	0.1–0.4	0.1–0.3
Well working volume (ml)	2–4	0.9–1.8	0.6–1.5	1.6–2.1
